How to connect the Window Server using Ansible?

 Description: Here I have explained, How to connect the Windows Server using Ansible?

Setup:

  1. Ansible Machine [172.31.27.195]
  2. Windows Server 2019 [172.31.17.192]
Create windows user for Ansible
  • Open Computer Management on Your Windows System and go to local User and Groups
  • Right Click and Create New User fill all required details and select password never expire

  • Add user in Administrator group
  • Install WinRM in windows server using PowerShell script save file as winrm.ps1

    #Requires -Version 3.0 # Configure a Windows host for remote management with Ansible # ----------------------------------------------------------- # # This script checks the current WinRM (PS Remoting) configuration and makes # the necessary changes to allow Ansible to connect, authenticate and # execute PowerShell commands. # # All events are logged to the Windows EventLog, useful for unattended runs. # # Use option -Verbose in order to see the verbose output messages. # # Use option -CertValidityDays to specify how long this certificate is valid # starting from today. So you would specify -CertValidityDays 3650 to get # a 10-year valid certificate. # # Use option -ForceNewSSLCert if the system has been SysPreped and a new # SSL Certificate must be forced on the WinRM Listener when re-running this # script. This is necessary when a new SID and CN name is created. # # Use option -EnableCredSSP to enable CredSSP as an authentication option. # # Use option -DisableBasicAuth to disable basic authentication. # # Use option -SkipNetworkProfileCheck to skip the network profile check. # Without specifying this the script will only run if the device's interfaces # are in DOMAIN or PRIVATE zones. Provide this switch if you want to enable # WinRM on a device with an interface in PUBLIC zone. # # Use option -SubjectName to specify the CN name of the certificate. This # defaults to the system's hostname and generally should not be specified. # Written by Trond Hindenes # Updated by Chris Church # Updated by Michael Crilly # Updated by Anton Ouzounov # Updated by Nicolas Simond # Updated by Dag Wieërs # Updated by Jordan Borean # Updated by Erwan Quélin # Updated by David Norman # # Version 1.0 - 2014-07-06 # Version 1.1 - 2014-11-11 # Version 1.2 - 2015-05-15 # Version 1.3 - 2016-04-04 # Version 1.4 - 2017-01-05 # Version 1.5 - 2017-02-09 # Version 1.6 - 2017-04-18 # Version 1.7 - 2017-11-23 # Version 1.8 - 2018-02-23 # Version 1.9 - 2018-09-21 # Support -Verbose option [CmdletBinding()] Param ( [string]$SubjectName = $env:COMPUTERNAME, [int]$CertValidityDays = 1095, [switch]$SkipNetworkProfileCheck, $CreateSelfSignedCert = $true, [switch]$ForceNewSSLCert, [switch]$GlobalHttpFirewallAccess, [switch]$DisableBasicAuth = $false, [switch]$EnableCredSSP ) Function Write-Log { $Message = $args[0] Write-EventLog -LogName Application -Source $EventSource -EntryType Information -EventId 1 -Message $Message } Function Write-VerboseLog { $Message = $args[0] Write-Verbose $Message Write-Log $Message } Function Write-HostLog { $Message = $args[0] Write-Output $Message Write-Log $Message } Function New-LegacySelfSignedCert { Param ( [string]$SubjectName, [int]$ValidDays = 1095 ) $hostnonFQDN = $env:computerName $hostFQDN = [System.Net.Dns]::GetHostByName(($env:computerName)).Hostname $SignatureAlgorithm = "SHA256" $name = New-Object -COM "X509Enrollment.CX500DistinguishedName.1" $name.Encode("CN=$SubjectName", 0) $key = New-Object -COM "X509Enrollment.CX509PrivateKey.1" $key.ProviderName = "Microsoft Enhanced RSA and AES Cryptographic Provider" $key.KeySpec = 1 $key.Length = 4096 $key.SecurityDescriptor = "D:PAI(A;;0xd01f01ff;;;SY)(A;;0xd01f01ff;;;BA)(A;;0x80120089;;;NS)" $key.MachineContext = 1 $key.Create() $serverauthoid = New-Object -COM "X509Enrollment.CObjectId.1" $serverauthoid.InitializeFromValue("1.3.6.1.5.5.7.3.1") $ekuoids = New-Object -COM "X509Enrollment.CObjectIds.1" $ekuoids.Add($serverauthoid) $ekuext = New-Object -COM "X509Enrollment.CX509ExtensionEnhancedKeyUsage.1" $ekuext.InitializeEncode($ekuoids) $cert = New-Object -COM "X509Enrollment.CX509CertificateRequestCertificate.1" $cert.InitializeFromPrivateKey(2, $key, "") $cert.Subject = $name $cert.Issuer = $cert.Subject $cert.NotBefore = (Get-Date).AddDays(-1) $cert.NotAfter = $cert.NotBefore.AddDays($ValidDays) $SigOID = New-Object -ComObject X509Enrollment.CObjectId $SigOID.InitializeFromValue(([Security.Cryptography.Oid]$SignatureAlgorithm).Value) [string[]] $AlternativeName += $hostnonFQDN $AlternativeName += $hostFQDN $IAlternativeNames = New-Object -ComObject X509Enrollment.CAlternativeNames foreach ($AN in $AlternativeName) { $AltName = New-Object -ComObject X509Enrollment.CAlternativeName $AltName.InitializeFromString(0x3,$AN) $IAlternativeNames.Add($AltName) } $SubjectAlternativeName = New-Object -ComObject X509Enrollment.CX509ExtensionAlternativeNames $SubjectAlternativeName.InitializeEncode($IAlternativeNames) [String[]]$KeyUsage = ("DigitalSignature", "KeyEncipherment") $KeyUsageObj = New-Object -ComObject X509Enrollment.CX509ExtensionKeyUsage $KeyUsageObj.InitializeEncode([int][Security.Cryptography.X509Certificates.X509KeyUsageFlags]($KeyUsage)) $KeyUsageObj.Critical = $true $cert.X509Extensions.Add($KeyUsageObj) $cert.X509Extensions.Add($ekuext) $cert.SignatureInformation.HashAlgorithm = $SigOID $CERT.X509Extensions.Add($SubjectAlternativeName) $cert.Encode() $enrollment = New-Object -COM "X509Enrollment.CX509Enrollment.1" $enrollment.InitializeFromRequest($cert) $certdata = $enrollment.CreateRequest(0) $enrollment.InstallResponse(2, $certdata, 0, "") # extract/return the thumbprint from the generated cert $parsed_cert = New-Object System.Security.Cryptography.X509Certificates.X509Certificate2 $parsed_cert.Import([System.Text.Encoding]::UTF8.GetBytes($certdata)) return $parsed_cert.Thumbprint } Function Enable-GlobalHttpFirewallAccess { Write-Verbose "Forcing global HTTP firewall access" # this is a fairly naive implementation; could be more sophisticated about rule matching/collapsing $fw = New-Object -ComObject HNetCfg.FWPolicy2 # try to find/enable the default rule first $add_rule = $false $matching_rules = $fw.Rules | Where-Object { $_.Name -eq "Windows Remote Management (HTTP-In)" } $rule = $null If ($matching_rules) { If ($matching_rules -isnot [Array]) { Write-Verbose "Editing existing single HTTP firewall rule" $rule = $matching_rules } Else { # try to find one with the All or Public profile first Write-Verbose "Found multiple existing HTTP firewall rules..." $rule = $matching_rules | ForEach-Object { $_.Profiles -band 4 }[0] If (-not $rule -or $rule -is [Array]) { Write-Verbose "Editing an arbitrary single HTTP firewall rule (multiple existed)" # oh well, just pick the first one $rule = $matching_rules[0] } } } If (-not $rule) { Write-Verbose "Creating a new HTTP firewall rule" $rule = New-Object -ComObject HNetCfg.FWRule $rule.Name = "Windows Remote Management (HTTP-In)" $rule.Description = "Inbound rule for Windows Remote Management via WS-Management. [TCP 5985]" $add_rule = $true } $rule.Profiles = 0x7FFFFFFF $rule.Protocol = 6 $rule.LocalPorts = 5985 $rule.RemotePorts = "*" $rule.LocalAddresses = "*" $rule.RemoteAddresses = "*" $rule.Enabled = $true $rule.Direction = 1 $rule.Action = 1 $rule.Grouping = "Windows Remote Management" If ($add_rule) { $fw.Rules.Add($rule) } Write-Verbose "HTTP firewall rule $($rule.Name) updated" } # Setup error handling. Trap { $_ Exit 1 } $ErrorActionPreference = "Stop" # Get the ID and security principal of the current user account $myWindowsID=[System.Security.Principal.WindowsIdentity]::GetCurrent() $myWindowsPrincipal=new-object System.Security.Principal.WindowsPrincipal($myWindowsID) # Get the security principal for the Administrator role $adminRole=[System.Security.Principal.WindowsBuiltInRole]::Administrator # Check to see if we are currently running "as Administrator" if (-Not $myWindowsPrincipal.IsInRole($adminRole)) { Write-Output "ERROR: You need elevated Administrator privileges in order to run this script." Write-Output " Start Windows PowerShell by using the Run as Administrator option." Exit 2 } $EventSource = $MyInvocation.MyCommand.Name If (-Not $EventSource) { $EventSource = "Powershell CLI" } If ([System.Diagnostics.EventLog]::Exists('Application') -eq $False -or [System.Diagnostics.EventLog]::SourceExists($EventSource) -eq $False) { New-EventLog -LogName Application -Source $EventSource } # Detect PowerShell version. If ($PSVersionTable.PSVersion.Major -lt 3) { Write-Log "PowerShell version 3 or higher is required." Throw "PowerShell version 3 or higher is required." } # Find and start the WinRM service. Write-Verbose "Verifying WinRM service." If (!(Get-Service "WinRM")) { Write-Log "Unable to find the WinRM service." Throw "Unable to find the WinRM service." } ElseIf ((Get-Service "WinRM").Status -ne "Running") { Write-Verbose "Setting WinRM service to start automatically on boot." Set-Service -Name "WinRM" -StartupType Automatic Write-Log "Set WinRM service to start automatically on boot." Write-Verbose "Starting WinRM service." Start-Service -Name "WinRM" -ErrorAction Stop Write-Log "Started WinRM service." } # WinRM should be running; check that we have a PS session config. If (!(Get-PSSessionConfiguration -Verbose:$false) -or (!(Get-ChildItem WSMan:\localhost\Listener))) { If ($SkipNetworkProfileCheck) { Write-Verbose "Enabling PS Remoting without checking Network profile." Enable-PSRemoting -SkipNetworkProfileCheck -Force -ErrorAction Stop Write-Log "Enabled PS Remoting without checking Network profile." } Else { Write-Verbose "Enabling PS Remoting." Enable-PSRemoting -Force -ErrorAction Stop Write-Log "Enabled PS Remoting." } } Else { Write-Verbose "PS Remoting is already enabled." } # Ensure LocalAccountTokenFilterPolicy is set to 1 # https://github.com/ansible/ansible/issues/42978 $token_path = "HKLM:\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\System" $token_prop_name = "LocalAccountTokenFilterPolicy" $token_key = Get-Item -Path $token_path $token_value = $token_key.GetValue($token_prop_name, $null) if ($token_value -ne 1) { Write-Verbose "Setting LocalAccountTOkenFilterPolicy to 1" if ($null -ne $token_value) { Remove-ItemProperty -Path $token_path -Name $token_prop_name } New-ItemProperty -Path $token_path -Name $token_prop_name -Value 1 -PropertyType DWORD > $null } # Make sure there is a SSL listener. $listeners = Get-ChildItem WSMan:\localhost\Listener If (!($listeners | Where-Object {$_.Keys -like "TRANSPORT=HTTPS"})) { # We cannot use New-SelfSignedCertificate on 2012R2 and earlier $thumbprint = New-LegacySelfSignedCert -SubjectName $SubjectName -ValidDays $CertValidityDays Write-HostLog "Self-signed SSL certificate generated; thumbprint: $thumbprint" # Create the hashtables of settings to be used. $valueset = @{ Hostname = $SubjectName CertificateThumbprint = $thumbprint } $selectorset = @{ Transport = "HTTPS" Address = "*" } Write-Verbose "Enabling SSL listener." New-WSManInstance -ResourceURI 'winrm/config/Listener' -SelectorSet $selectorset -ValueSet $valueset Write-Log "Enabled SSL listener." } Else { Write-Verbose "SSL listener is already active." # Force a new SSL cert on Listener if the $ForceNewSSLCert If ($ForceNewSSLCert) { # We cannot use New-SelfSignedCertificate on 2012R2 and earlier $thumbprint = New-LegacySelfSignedCert -SubjectName $SubjectName -ValidDays $CertValidityDays Write-HostLog "Self-signed SSL certificate generated; thumbprint: $thumbprint" $valueset = @{ CertificateThumbprint = $thumbprint Hostname = $SubjectName } # Delete the listener for SSL $selectorset = @{ Address = "*" Transport = "HTTPS" } Remove-WSManInstance -ResourceURI 'winrm/config/Listener' -SelectorSet $selectorset # Add new Listener with new SSL cert New-WSManInstance -ResourceURI 'winrm/config/Listener' -SelectorSet $selectorset -ValueSet $valueset } } # Check for basic authentication. $basicAuthSetting = Get-ChildItem WSMan:\localhost\Service\Auth | Where-Object {$_.Name -eq "Basic"} If ($DisableBasicAuth) { If (($basicAuthSetting.Value) -eq $true) { Write-Verbose "Disabling basic auth support." Set-Item -Path "WSMan:\localhost\Service\Auth\Basic" -Value $false Write-Log "Disabled basic auth support." } Else { Write-Verbose "Basic auth is already disabled." } } Else { If (($basicAuthSetting.Value) -eq $false) { Write-Verbose "Enabling basic auth support." Set-Item -Path "WSMan:\localhost\Service\Auth\Basic" -Value $true Write-Log "Enabled basic auth support." } Else { Write-Verbose "Basic auth is already enabled." } } # If EnableCredSSP if set to true If ($EnableCredSSP) { # Check for CredSSP authentication $credsspAuthSetting = Get-ChildItem WSMan:\localhost\Service\Auth | Where-Object {$_.Name -eq "CredSSP"} If (($credsspAuthSetting.Value) -eq $false) { Write-Verbose "Enabling CredSSP auth support." Enable-WSManCredSSP -role server -Force Write-Log "Enabled CredSSP auth support." } } If ($GlobalHttpFirewallAccess) { Enable-GlobalHttpFirewallAccess } # Configure firewall to allow WinRM HTTPS connections. $fwtest1 = netsh advfirewall firewall show rule name="Allow WinRM HTTPS" $fwtest2 = netsh advfirewall firewall show rule name="Allow WinRM HTTPS" profile=any If ($fwtest1.count -lt 5) { Write-Verbose "Adding firewall rule to allow WinRM HTTPS." netsh advfirewall firewall add rule profile=any name="Allow WinRM HTTPS" dir=in localport=5986 protocol=TCP action=allow Write-Log "Added firewall rule to allow WinRM HTTPS." } ElseIf (($fwtest1.count -ge 5) -and ($fwtest2.count -lt 5)) { Write-Verbose "Updating firewall rule to allow WinRM HTTPS for any profile." netsh advfirewall firewall set rule name="Allow WinRM HTTPS" new profile=any Write-Log "Updated firewall rule to allow WinRM HTTPS for any profile." } Else { Write-Verbose "Firewall rule already exists to allow WinRM HTTPS." } # Test a remoting connection to localhost, which should work. $httpResult = Invoke-Command -ComputerName "localhost" -ScriptBlock {$env:COMPUTERNAME} -ErrorVariable httpError -ErrorAction SilentlyContinue $httpsOptions = New-PSSessionOption -SkipCACheck -SkipCNCheck -SkipRevocationCheck $httpsResult = New-PSSession -UseSSL -ComputerName "localhost" -SessionOption $httpsOptions -ErrorVariable httpsError -ErrorAction SilentlyContinue If ($httpResult -and $httpsResult) { Write-Verbose "HTTP: Enabled | HTTPS: Enabled" } ElseIf ($httpsResult -and !$httpResult) { Write-Verbose "HTTP: Disabled | HTTPS: Enabled" } ElseIf ($httpResult -and !$httpsResult) { Write-Verbose "HTTP: Enabled | HTTPS: Disabled" } Else { Write-Log "Unable to establish an HTTP or HTTPS remoting session." Throw "Unable to establish an HTTP or HTTPS remoting session." } Write-VerboseLog "PS Remoting has been successfully configured for Ansible."

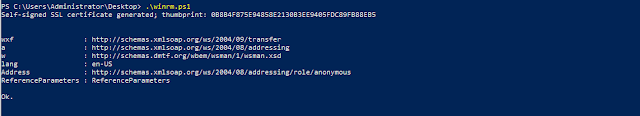

  • Run winrm.ps1 and you will get the output as follow




Install WinRM in Ansible machine
  • WinRM stands for Windows Remote Management. It allows you to perform management tasks  on remote systems using below command
# pip install pywinrm




Add Windows Machine in Ansible Host file

  • Add windows machine in ansible host file as follow and save it
# vi /etc/ansible/hosts

[win]
172.31.17.192

[win:vars]
ansible_user=Ansible
ansible_password=P@ssw0rd123
ansible_connection=winrm
ansible_port=5986
ansible_winrm_server_cert_validation=ignore
  • Test windows machine using below command
# ansible -m win_ping win
