Add MySQL machine on Zabbix Monitoring

Description: Here I have explained, How add MySQL Service on Zabbix

Procedure:

• Download MySQL template in Zabbix from below URL and Import it on Zabbix

           https://www.zabbix.com/integrations/mysql

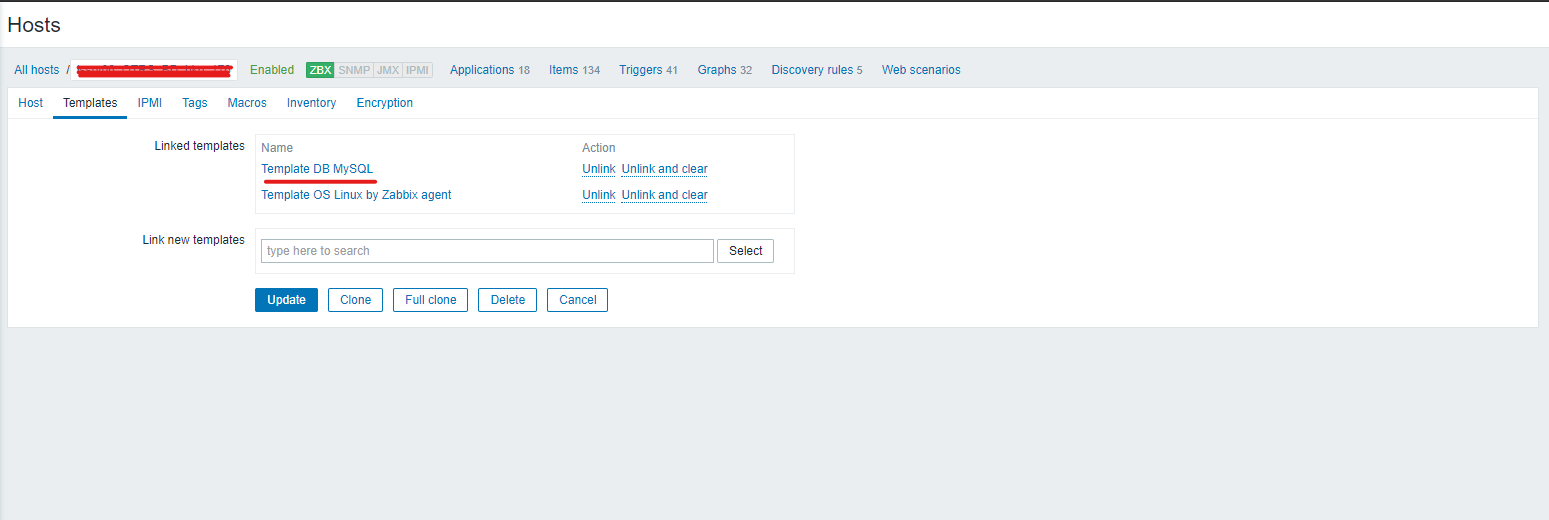

• Once you import template, link MySQL template with host from Configuration tab





• Install Zabbix-client and MySQL client on Host machine
• Download MySQL template file from below URL and paste it to /etc/zabbix/zabbix_agentd.d/

https://git.zabbix.com/projects/ZBX/repos/zabbix/browse/templates/db/mysql_agent/template_db_mysql.conf

• Create MySQL user for monitoring using below command

  CREATE USER 'zbx_monitor'@'%' IDENTIFIED BY '<password>';
  GRANT USAGE,REPLICATION CLIENT,PROCESS,SHOW DATABASES,SHOW VIEW ON *.* TO 'zbx_monitor'@'%';

• Create .my.cnf under /var/lib/zabbix/  and define username  password as follow

    [client]
    user=zbx_monitor
    password=<password>

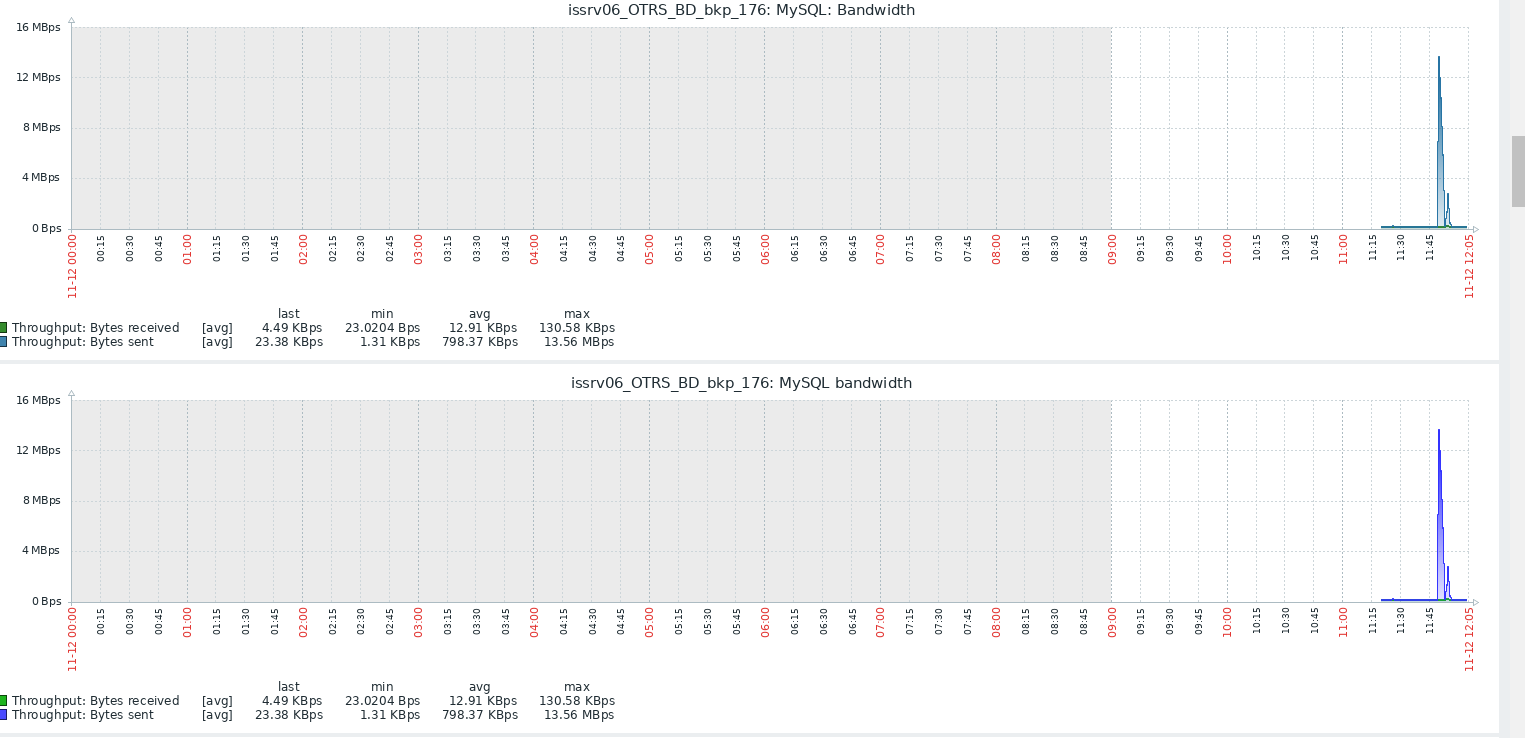

• Once file created restart zabbix-agent service and verify monitoring dashboard and host. You will get data under mysql graphs

Zabbix Email Notification Setup

 Description:  Here I have explain, How to setup Email notification on Zabbix when any alert is triggered?

• Here I am using Google account to send email notification. So need to enable the use of less secure applications using this URL https://myaccount.google.com/lesssecureapps

• To setup email open zabbix URL and navigate to Administration -- Media types then select Email

• Fill all require details like mail server, mail ID, SMTP port number

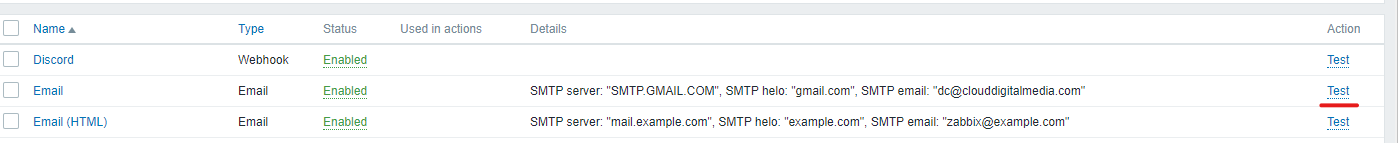

• Once you fill all the details test email setting by click on test on email

• To report problems to administrator you need to enable trigger action. To enable it navigate to Configurations -- Actions and enable Report Problems to Zabbix Administrators

• This will enable email notification to Zabbix Admin group. You need to change the mail id from the user account configuration

• Finally email notification has been setup

Add device using SNMP in Zabbix

Description:  Here I have explained, How to add device using SNMP in Zabbix

Procedure:

• Login to Zabbix Web Interface and click on configuration > Hosts
• Create Hosts to add device that you want to monitor

• Once you click on create host it ask for some details like hostname, Group, Agent details etc...

• Select Template of SNMP [Template Module Interface SNMP]

• Once you add device, SNMPv2 is configure with device with community name "Test_SNMP" So to define community name open Macro and add your community. You need to set SNMP version as per your environment requirement

• once You add all require information just wait for some time all require graphs will discover automatically
• If you want to test SNMP connection from Zabbix server to device you can use snmpwalk command line utility to test connection

# snmpwalk -v 2c -c Test_SNMP 10.10.0.1

Log file Monitoring in Zabbix

 Description: Zabbix can be used for centralized monitoring and analyzed of log files with/without log rotation support.

To monitor log file you must have:

• Zabbix agent running on the host
• log monitoring item setup

Procedure:

• The first step is to configure zabbix agent in client machine and configure below things

Hostname=WindowsWeb1         ==================[Name defined in zabbix console as hostname]
LogFile=/tmp/zabbix_agentd.log ================[Log file of zabbix agent]
Server=127.0.0.1, 192.168.10.10 ===============[DNS name or IP Address of Zabbix Server]
ServerActive=192.168.10.10 ====================[DNS name or IP address of Zabbix Server]

Timeout=10 ====================================[Timeout need to set more than 5]

• Need to restart zabbix-agent service
• Now we need to configure log application and item in Zabbix console
• Login to zabbix console http://192.168.10.10/zabbix
• Navigate to Configuration ---Hosts and select your host [In example WindowsWeb1] then create one Application Named LOG

• Once you add Application navigate to items and create log item under LOG application

On the Item creation screen, you need to configure the following items:

• Name: Enter an identification to the Windows log file.

• Type: Zabbix Agent (Active)

• Key: log[E:\Log\Application.log,,,,skip]

• Type of Information: Log

• Update interval: 1 Second

• Application: LOG

• Once you add item restart zabbix- agent from client machine and wait for 5 minutes to update file and reflect it.
• To verify it Navigate to Monitoring Tab --- Latest data ---- under server name use WindowWeb1 and verify log file

• You can also filter expression and other options in Log files like expression, MaxLine, Output etc.. in Key
