Create Container in AWS ECS using custom Docker repository without EC2 instance [serverless]

Description: Here I have explained, How to create a Container in AWS ECS using console using Custom Docker image from the Docker repository.

In the previous Blog, I have explained how to create a custom image and upload it to Docker Hub. In this blog, I will use that custom image to create a container in AWS ECS.

Open ECS service and click on Get Started

Creating custom container definition and edit task definition [if you want more resources]

Once you click on configure it will popup for details that need to fill like public repository and image details. In this example, I have used harpalgohilon/opensource:httpd]

harpalgohilon = Docker hub user id

opensource = Public Repository name

httpd = tag name

Port = 80

Also, you can define configuration in the Advance configuration tab like CPU, RAM, Health check, etc ...

Now creating service and cluster after filling all the details and save

At last click on create button

After clicking on create it will take some time to create the container. After a few moments container will create.

To check the container click on view services and it redirects to the Service dashboard.

Now click on tasks, you will get the list of tasks and its status [Running or Stopped]

Click on tasks it will show you all the details like public, private IP Status, etc...

Now browse the Public IP over browser, it will show the custom page which I have created on the last log

Create VPC [Virtual Private Cloud] on AWS using Terraform

Description: Here I have explained, How to Create VPC along with subnet and Network ACL on AWS using Terraform

Below is the Terraform project and variable file, using this we create VPC with subnet and Network ACL

• Below is the VPC terraform project file

# vi VPC.tf

# Create VPC/Subnet/Security Group/Network ACL
provider "aws" {
  access_key = var.access_key
  secret_key = var.secret_key
  region     = var.region
}
# create the VPC
resource "aws_vpc" "Tech_VPC" {
  cidr_block           = var.vpcCIDRblock
  instance_tenancy     = var.instanceTenancy
  enable_dns_support   = var.dnsSupport
  enable_dns_hostnames = var.dnsHostNames
tags = {
    Name = "Tech VPC"
}
} # end resource
# create the Subnet
resource "aws_subnet" "Tech_VPC_Subnet" {
  vpc_id                  = aws_vpc.Tech_VPC.id
  cidr_block              = var.subnetCIDRblock
  map_public_ip_on_launch = var.mapPublicIP
  availability_zone       = var.availabilityZone
tags = {
   Name = "Tech VPC Subnet"
}
} # end resource
# Create the Security Group
resource "aws_security_group" "Tech_VPC_Security_Group" {
  vpc_id       = aws_vpc.Tech_VPC.id
  name         = "Tech VPC Security Group"
  description  = "Tech VPC Security Group"

  # allow ingress of port 22
  ingress {
    cidr_blocks = var.ingressCIDRblock
    from_port   = 22
    to_port     = 22
    protocol    = "tcp"
  }

  # allow egress of all ports
  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }
tags = {
   Name = "Tech VPC Security Group"
   Description = "Tech VPC Security Group"
}
} # end resource
# create VPC Network access control list
resource "aws_network_acl" "Tech_VPC_Security_ACL" {
  vpc_id = aws_vpc.Tech_VPC.id
  subnet_ids = [ aws_subnet.Tech_VPC_Subnet.id ]
# allow ingress port 22
  ingress {
    protocol   = "tcp"
    rule_no    = 100
    action     = "allow"
    cidr_block = var.destinationCIDRblock
    from_port  = 22
    to_port    = 22
  }

  # allow ingress port 80
  ingress {
    protocol   = "tcp"
    rule_no    = 200
    action     = "allow"
    cidr_block = var.destinationCIDRblock
    from_port  = 80
    to_port    = 80
  }

  # allow ingress ephemeral ports
  ingress {
    protocol   = "tcp"
    rule_no    = 300
    action     = "allow"
    cidr_block = var.destinationCIDRblock
    from_port  = 1024
    to_port    = 65535
  }

  # allow egress port 22
  egress {
    protocol   = "tcp"
    rule_no    = 100
    action     = "allow"
    cidr_block = var.destinationCIDRblock
    from_port  = 22
    to_port    = 22
  }

  # allow egress port 80
  egress {
    protocol   = "tcp"
    rule_no    = 200
    action     = "allow"
    cidr_block = var.destinationCIDRblock
    from_port  = 80
    to_port    = 80
  }

  # allow egress ephemeral ports
  egress {
    protocol   = "tcp"
    rule_no    = 300
    action     = "allow"
    cidr_block = var.destinationCIDRblock
    from_port  = 1024
    to_port    = 65535
  }
tags = {
    Name = "Tech VPC ACL"
}
} # end resource
# Create the Internet Gateway
resource "aws_internet_gateway" "Tech_VPC_GW" {
 vpc_id = aws_vpc.Tech_VPC.id
 tags = {
        Name = "Tech VPC Internet Gateway"
}
} # end resource
# Create the Route Table
resource "aws_route_table" "Tech_VPC_route_table" {
 vpc_id = aws_vpc.Tech_VPC.id
 tags = {
        Name = "Tech VPC Route Table"
}
} # end resource
# Create the Internet Access
resource "aws_route" "Tech_VPC_internet_access" {
  route_table_id         = aws_route_table.Tech_VPC_route_table.id
  destination_cidr_block = var.destinationCIDRblock
  gateway_id             = aws_internet_gateway.Tech_VPC_GW.id
} # end resource
# Associate the Route Table with the Subnet
resource "aws_route_table_association" "Tech_VPC_association" {
  subnet_id      = aws_subnet.Tech_VPC_Subnet.id
  route_table_id = aws_route_table.Tech_VPC_route_table.id
} # end resource
# end vpc.tf

• Below is the variable file for Terraform. In the variable file, I have used 172.16.0.0/16 CIDR

# variables.tf
variable "access_key" {
     default = "XXXXXXXXX"
}
variable "secret_key" {
     default = "XXXXXXXXXXXXXXXXXXXX"
}
variable "region" {
     default = "us-east-1"
}
variable "availabilityZone" {
     default = "us-east-1a"
}
variable "instanceTenancy" {
    default = "default"
}
variable "dnsSupport" {
    default = true
}
variable "dnsHostNames" {
    default = true
}
variable "vpcCIDRblock" {
    default = "172.16.0.0/16"
}
variable "subnetCIDRblock" {
    default = "172.16.1.0/24"
}
variable "destinationCIDRblock" {
    default = "0.0.0.0/0"
}
variable "ingressCIDRblock" {
    type = list
    default = [ "0.0.0.0/0" ]
}
variable "egressCIDRblock" {
    type = list
    default = [ "0.0.0.0/0" ]
}
variable "mapPublicIP" {
    default = true
}
# end of variables.tf

• After creating both the files now initialize terraform project and apply using the below commands

# terraform init

# terraform apply

• Once the process will be completed, You will get VPC in the Dashboard

Create S3 Bucket in AWS using Ansible

 Description: Here I have explained, How to Create Bucket in AWS using Ansible

Create IAM user from AWS:

• IAM user need to Authorize Ansible Playbook to manage the S3 bucket
• Open IAM console from AWS and navigate to IAM service

• Give S3 Full Access to IAM created user

• Once the user created, download the user detail .csv file which contains Access Key and Secret ID


Install Require Ansible Packages in Ansible server

• boto
  # pip install boto
• boto3
  # pip install boto3
• python version >= 2.6
  # yum install python

Create ssh key for localhost to authorize

# ssh-keygen

• Copy generated ssh key to authorization keys
  # vi /root/.ssh/authorized_keys

Prepare Playbook to create S3 Bucket with Name "techblogalbucket" in "us-east-1" Region and with Public access

# vi Create_Bucket.yml
---
- hosts: localhost
  tasks:
  - name: Create an S3 bucket
    become: true
    aws_s3: aws_access_key=XXXXXXXX aws_secret_key=XXXXXXXXXXXXXXX bucket=techblogalbucket  mode=create permission=public-read region=us-east-1

• Run yml file using ansible-playbook command

# ansible-playbook s3_create.yml

• After successfully run yaml file verify S3 bucket in AWS console

How to create EC2 instance using Ansible

Description: Here I have explained, How to create EC2 instance using Ansible

Create an IAM user  from AWS console

• Open AWS console and navigate to IAM service

Install Require Packages on Ansible Machine

• Once User created successfully install below require things on Ansible machine

Ansible

# yum install ansible -y

Python

# yum install python python-devel python-pip

Boto [Boto is the python package which provides the interface to AWS] install using pip

#  pip install boto

Create Ansible Playbook to Create EC2 instance

• Add localhost in ansible host file for creating the connection to AWS console

[webserver]

localhost

• Create SSH Key for localhost and copy to authorization
  # ssh-keygen -t rsa




• Once key file created copy to authorized_keys and paste as follow

• Create a playbook for EC2 instance and paste below content in yaml file

# vi ec2.yaml

---
  - name: Launching the AMS instance
    hosts: localhost
    tasks:
      - name: Launching the AMS instance
        ec2:
          key_name: ansible
          region: us-east-1
	  instance_type: t2.micro
	  image: ami-0c582118883b46f4f
          group: Ansible
	  count: 2
	  aws_access_key: WODAJGU3OHZ7RDKG4TPQ
	  aws_secret_key: OD3I2mgh/ynyrJJ9Y/bLQto6JLII3gyGBFYJ+w7

  Description of Playbook
    key_name: Key created in EC2  instance

    region: The region on which you want to create new instance

    instance_type : Instance Type in EC2

    image: Image you want to use to create new instance, You can get image id from EC2 launch                             console

   group: Security Group name which you want to place for VM
   count : Number of EC2 instance which you want to create

   aws_access_key: Access key from the user IAM user which we have created on beginning
   aws_secret_key: Secret key from the IAM user

• You will get both the keys from AWS IAM console

• Test playbook content using below command


# ansible-playbook -C ec2.yaml

• Once result showing OK you can run playbook using the ansible-playbook command

# ansible-playbook ec2.yaml

• You can see new 2 new instances on the list as follow









Sync Up EC2 instance With S3 bucket

 Description: Here I have explained how to sync EC2 instance with S3 bucket

Create an IAM User:  First I am creating IAM user for authentication and authorization

• To create user IAM user Open AWS console https://console.aws.amazon.com/iam/

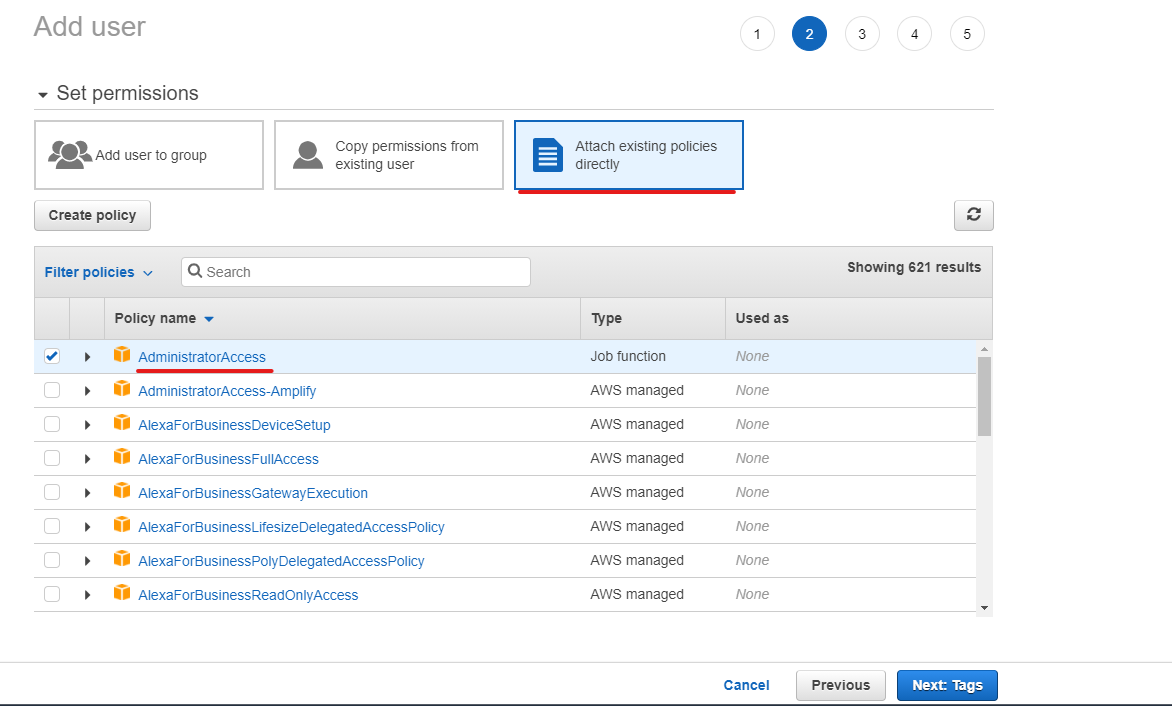

• Select the option "Attach existing policy" and search for "AdministratorAccess" and "AmazonEC2FullAccess"
• Review policy and click on Create User

• Download .csv file and save in the local path

• Create EC2 instance and log on to the machine once the instance is up

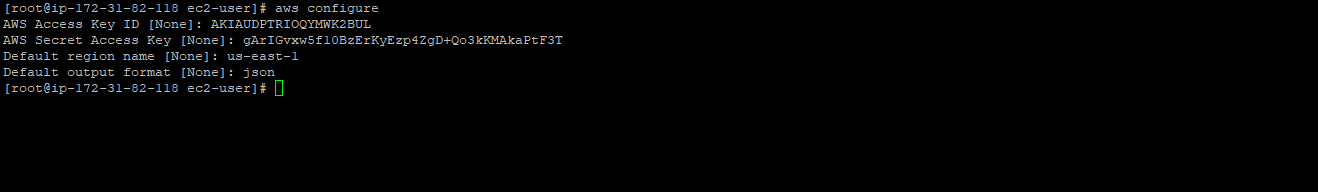

• Run aws configure command to configure user details where it will ask AccessKey and SecretKey. It will ask some information from CSV file which download under Create IAM user as follow

• Now I am installing HTTP on server using below command

# yum install httpd

• Create default.php file in /var/www/html

Create S3 Bucket

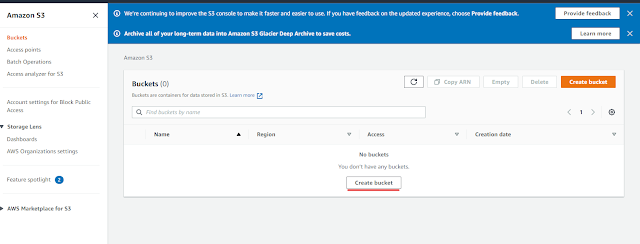

• To create S3 Bucket open Amazon S3 console and choose "Create Bucket"
• In "Create a Bucket" type a bucket name in the Bucket Name field

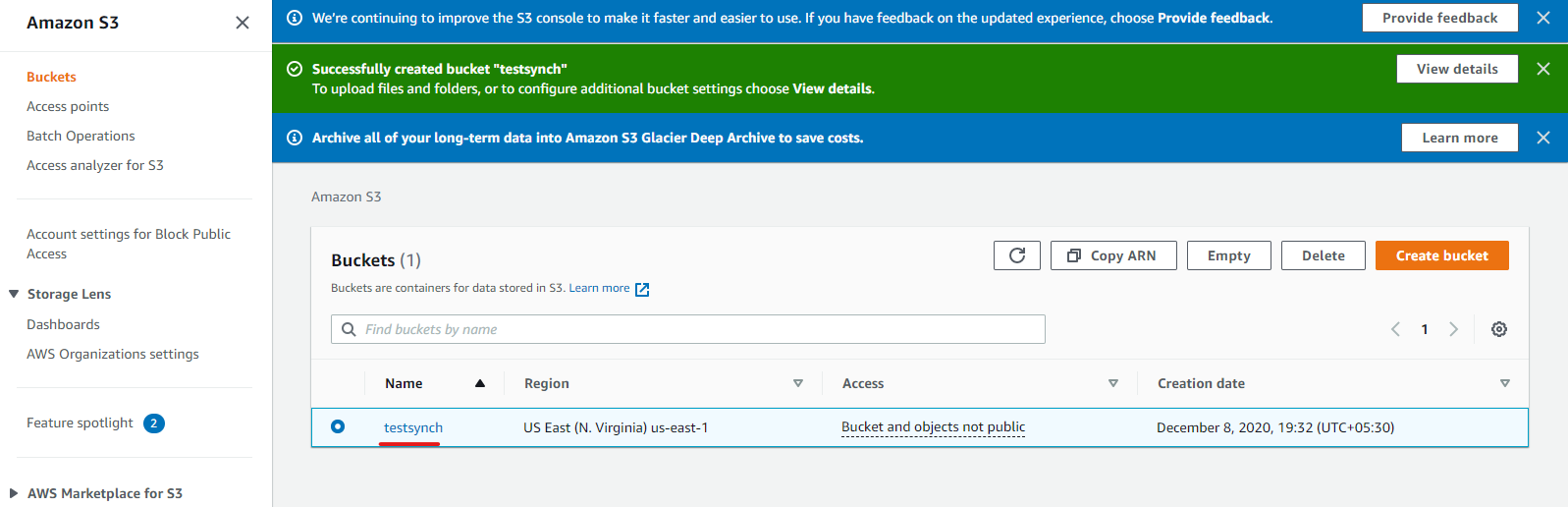

• Create an empty bucket and looks like as follow

Sync EC2 instance with S3 bucket

• To sync EC2 content to S3 bucket access  ssh console and run below command

# aws s3 sync /var/www/html/ s3://testsynch/datasync

Description of the above command

aws s3 sync                   -    To sync

/var/www/html/             -    Path where our actual php file is placed in EC2

s3://testsynch/datasync  -    Path where to Sync in S3 bucket

• Now you can see default.php under S3 bucket

AWS Code Deploy using GitHub

 Description: Here I have explain, What is AWS code deploy and How to implement it with GitHub?

What is AWS Code Deploy?

It is service that automates the code deployments to any instance like EC2 instance or Instance which running on-premise. Helps rapidly release new features and avoid downtime during deployment.

Architect

Prerequisites:

1. GitHub Repository with web application [Here In my case harpal1990/AppTest]
2. AWS account

IAM Roles : Two Roles require for AWS code deploy one for code deploy and another for EC2 instance.

• To create role open AWS console, navigate to IAM -- Roles -- Create Role
• Create the following IAM roles and attached the policies

Role1:

Name : EC2Role

Permission : AmazonEC2FullAccess, AmazonS3FullAccess

[Allow EC2 instance and AmazonS3 access]

Role2:

Name :  CodeDeployRole

Permission: AWSCodeDeployRole, AmazonS3FullAccess

• To create IAM role navigate to IAM -- Roles  -- Create role  once you click on  create role select EC2 Service

• Here I have selected 2 Permission to allow access S3 bucket are as follow and save with EC2Role name and click on create

AmazonEC2FullAccess, AmazonS3FullAccess

• Now create another role with Name CodeDeployServieRole for Code Deploy and assigned "AWSCodeDeployRole"

AWSCodeDeployRole, AmazonS3FullAccess

• Once you create Role you need to edit policy and modify relationship

• Update Service by "codedeploy.region.amazonaws.com" change region

• Attach IAM role  CodeDeployInstanceRole with EC2 instance

Prepare EC2 instance with Code Deploy Agent

• For create instance open AWS console and navigate to EC2 service. Create Amazon Linux 2 AMI

• Create EC2 instance with pre install package like ruby, python, aws-cli

#!/bin/bash

sudo yum -y update

sudo yum -y install ruby

sudo yum -y install httpd

service httpd start

sudo yum -y install wget

cd /home/ec2-user

wget https://aws-codedeploy-ap-south-1.s3.ap-south-1.amazonaws.com/latest/install

sudo chmod +x ./install

sudo ./install auto

sudo yum install -y python-pip

sudo pip install awscli

• Allow port 80 in security group for apache
• Assign common tag to EC2 instance, Here I have assigned tag Name and value "CodeDeploy"
• Review and launch EC2 instance, It will take some time to create.

Create Application

• Before create application I am going to create one directory called script on GitHub repository and put service start and stop script on same

• To create application open AWS console and Navigate to Developer Tools -- Code Deploy -- Applications

• Once you click on Create application, you will ask for Application Name and Compute Platform. You have 3 options for compute platform [EC2/On-premises, AWS Lambda and Amazon ECS] for this tutorial I am using EC2/On-premises

• Create Deployment Group  fill all require details for deployment like Name, Service role create for CodeDeployment

• Give tag which I have assigned to EC2 instance, Here I have given Name as Tag and CodeDeploy as a value. So you can see 2 unique matches found

• Currently no load balancer is required so I haven't use it, At last click on create deployment group

• Create Pipeline for same application project

• Once you click on Next it ask to connect source stage, Here In this demo I have used GitHub as repository. Once you click on GitHub it ask for credentials and then repository name

• The next step to select build provider, Here I am skip it you can choose Jenkins or AWS codebuild
• At last click on review and create.
• Once it create successfully It will upload appspec.yml file to repository. Now modify appspec.yml as per your requirement

• Code Deploy Stage to deploy application. Fill all the require details

• Review all settings and click on Create Pipeline. It will take some time to create
• Once Pipeline created Create Deployment and run pipeline. Once pipeline run successfully it will upload content to all EC2 instance location define in appspec.yml file.
• To verify you nee to browse one of EC2 instance IP address it shows index page as follow

• Now try to modify on Index page and re run pipeline you will get changes.
